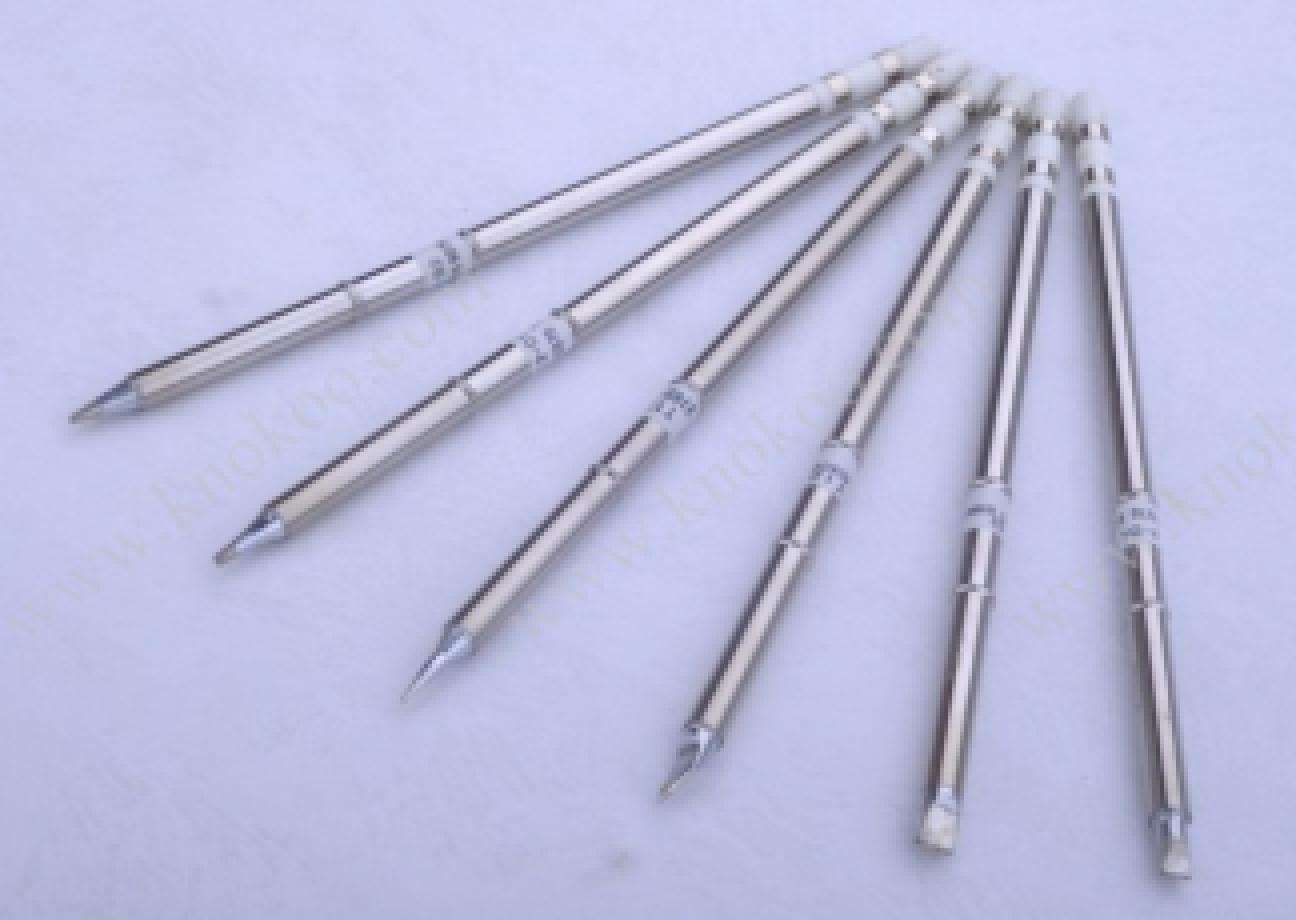

T12 series soldering tips B type
T12-BL、T12-B4、T12-B3、T12-B2、T12-B
T12 series BC type
T12-BCF3、T12-BC3、T12-BCF2、T12-BC2、T12-BCF1、T12-BC1
T12 series C type
T12-CF4、T12-C4、T12-C1
T12 series D type
T12-DL52、T12-DL32、T12-DL12、T12-DL08、T12-D52、T12-D4、T12-D24、T12-D16、T12-D12、T12-D08
T12 series I type
T12-ILS、T12-IL、T12-I
T12 series J type
T12-JS02、T12-JL02、T12-J02
T12 series K type
T12-KU、T12-KR、T12-KL、T12-KF、T12-K
T12 series SMD type(quadrilateral)
T12 series SMD type(pipe shape)
T12 series SMD type(Spatula shape)
T12-1406、T12-1405、T12-1404、T12-1403、T12-1402、T12-1401
T12 series special usage type
T12-KRZ、T12-KFZ、T12-D4Z、T12-D24Z、T12-D16Z、T12-D12Z、T12-CF4Z、T12-C4Z、T12-BCF3Z、T12-BC3Z、T12-BCM3、T12-BCM2、T12-BCF2Z、T12-BC2Z、T12-BCF1Z、T12-BC1Z、T12-B2Z、T12-BZ
T12 series high heat capacity type
T12-WD52、T12-WD16、T12-WD12、T12-WD08、T12-WI、T12-WB
Descriptions:
1.Make use of imported raw material-non-oxide copper, use special molding machine to process, the tip size very precise;
2.Lead-free alloy iron electric plating close-grained, very long life about 3-4 times compared to domestic products;
3.Product surface use special material handling, tip end with coating processing, so as to ensure the tip not turn black under the high temperature;
4.Good performance in tin-on and tin melting, solder joints uniform, and fluent soldering;
5.With high anti-oxidation, good moist performance, quick thermal conductivity, the product quality has reached the world's top.
Features:
1.Applied to soldering station FX-951/FX-952/FX-950/FM203/FM204/FM206/FM202
2.Lead-free, environment-friendly, 100% conformed to ROHS standard, lead<0.1% wt;
3.The technical indicators reach to original standard;
4.Use under 400°C temperature(±20, it can have 50000 solder joints.
